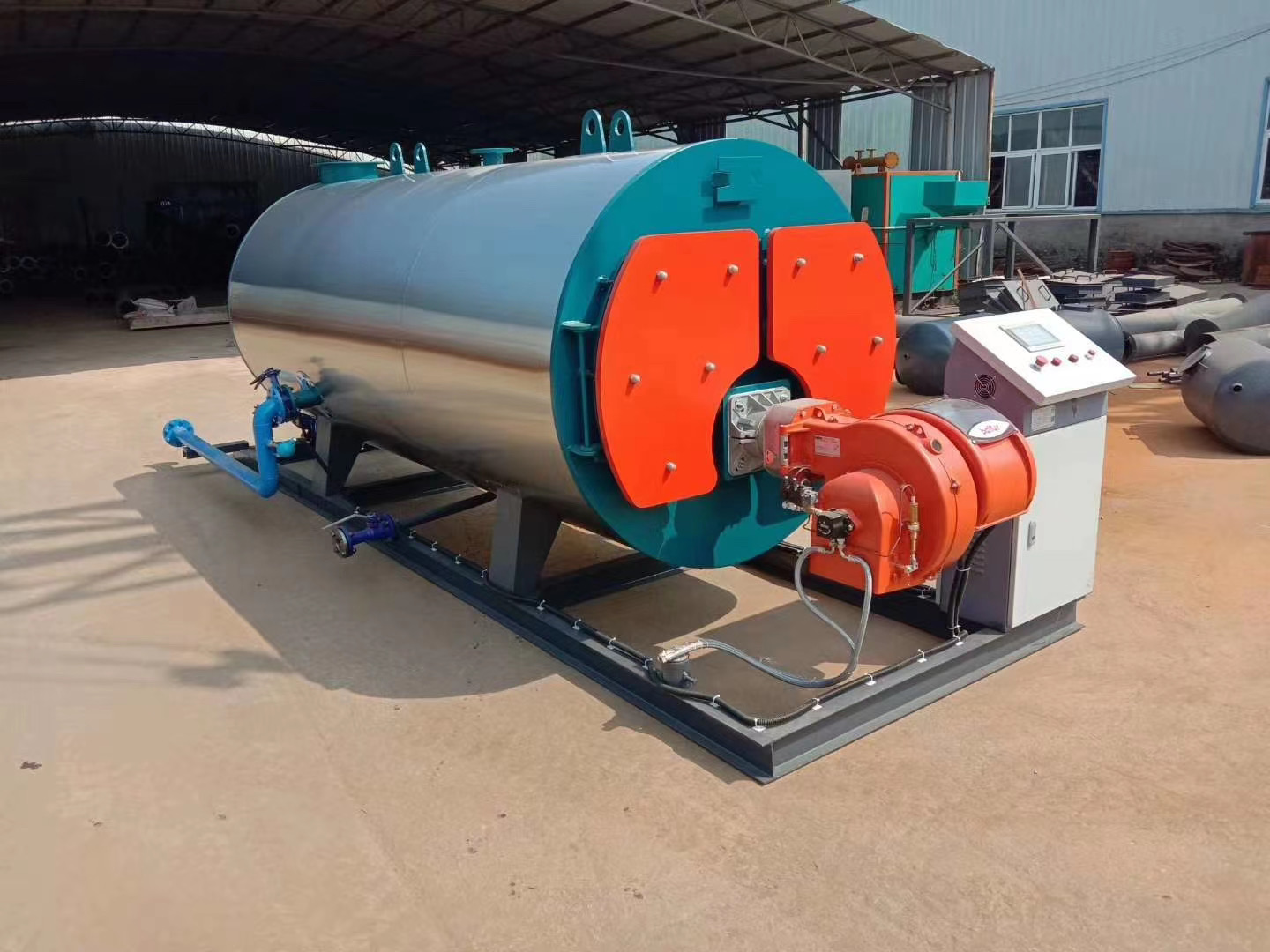

CWNS series fuel/gas hot water boiler

CWNS series fuel/gas hot water boiler

Boiler medium: hot water

Working pressure: 0.7-1.6Mpa hot water 60 °/95 °

Capacity: 1-20 t/h 0.7-14 MW

Applicable fuels: natural gas, coke oven gas, biogas and other gas fuels, diesel, heavy oil, light oil, residual oil and other liquid fuels

Application industries: Central heating, hospitals, hotels, schools, etc

Boiler characteristics:

1. The three pass layout of the boiler and the corrugated furnace liner enhance heat transfer, thereby increasing the heating surface area and reducing boiler costs.

2. Using a new type of aluminum silicate plate as insulation material, it has good insulation performance, light weight, long service life, and is easy to maintain.

3. The entire boiler system is safe and reliable, and the boiler is equipped with overpressure safety protection devices such as safety valves, making the boiler more stable and easy to use.

4. The combustion system adopts an original combustion engine, with sufficient combustion, low nitrogen oxide emissions, flameout protection, air pressure protection, and fault memory.

5. The control system adopts an intelligent computer controller, which has automatic control functions such as water replenishment, combustion, and circulation control, and is easy to operate.

Fuel: Fuel, gas protection device

1. Real time water level monitoring function: equipped with an electronic water level detection device to monitor the boiler water level in real time.

2. Time setting function: Users can freely combine and set the start and stop time of the boiler according to their needs.

3. Leakage protection function: When the control system detects a leakage in the electric heating element, it will automatically cut off the power supply.

4. Water shortage protection: When the boiler is short of water, the burner control circuit should be cut off in a timely manner to prevent dry burning and damage to the burner. At the same time, the controller will issue a water shortage alarm indication.

5. Abnormal power protection function: The boiler immediately stops running.

6. Overpressure interlock protection: When the pressure inside the boiler exceeds the user set value, the burner is prohibited from working and an alarm is triggered.

7. Multiple safety protections such as pressure controller, water level alarm, safety valve, and extremely low water level alarm.

8. Complete gas valve assembly and protection system: Provide a complete gas valve assembly and accessories including filters, pressure regulating valves, solenoid valves, etc., to ensure the safety of gas.

9. Smoke monitoring device can automatically monitor the exhaust temperature of the boiler, making it more convenient to grasp the combustion situation of the boiler.
