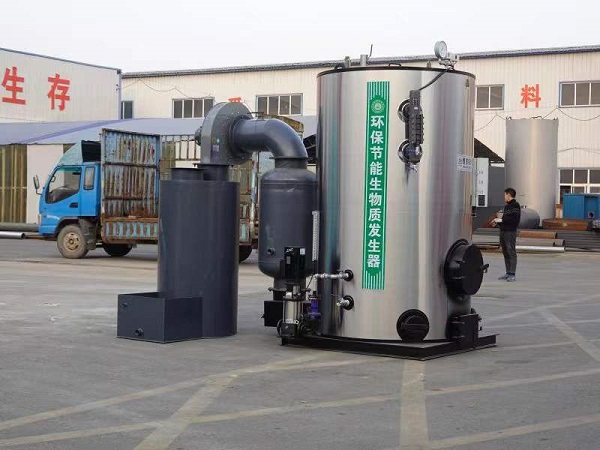

Vertical biomass steam generator

Vertical biomass steam generator

Boiler medium: saturated steam

Work pressure: 0.2-1.25Mpa can be customized

Capacity: 0.5-4t/h~Multiple units can be connected in parallel up to a maximum of 20 tons

Applicable fuels: natural gas, coke oven gas, biogas and other gas fuels, diesel, heavy oil, light oil, residue oil and other liquid fuels, biomass pellets, straw, wood chips, corn cobs, wood chips, palm shells, rice husks, etc

Application industries: heating, chemical, food, tobacco, textile, printing and dyeing, feed, medicine, building materials, brewing, rubber, hospital

The vertical biomass pellet steam generator adopts a multi tube and multi pass design, with high combustion efficiency, a large capacity semi gasification combustion chamber, automatic air distribution combustion control, and a flue gas recovery device. The comprehensive fuel combustion efficiency can reach over 93%. The feeding system adopts advanced screw rotation driven feeding device, and the feeding is precise and adjustable in speed. Only the storage bin needs to be filled up in one go, and the automatic feeding adjustment saves time and effort without the need for special management, annual inspection, or professional furnace operators. The safety configuration has multiple protection devices such as pressure, water shortage, and safety valves, which display the operating status in real time to ensure stable, safe, and reliable operation of the boiler.

Scope of application:

Widely used for heating plant greenhouses, hotels, guesthouses, sauna and bath centers, leisure clubs, beauty salons, villas, factories, schools, and enterprises for hot water, bathing, heating, and drying.

1. Adopting automatic water inlet method and optional variable frequency water supply, steam can be produced within 10 minutes from successful ignition, and the exhaust temperature is very low.

2. Induced draft system: The induced draft fan adopts a dedicated low-noise, high-temperature resistant long shaft motor; Imported bearings have a long service life.

3. Ignition system: The automatic igniter adopts a dual ignition device, which has fast ignition speed, high efficiency, and long service life

4. Feeding system: A gap is formed between the primary and secondary feeds of the feeding system, and there are flame arresters. There is no tempering phenomenon, which slows down the load of the feeding system and reduces faults.

5. The control system is equipped with an integrated microcomputer control system, which enables one click operation and has the functions of automatic feeding, automatic ignition, blowing and induced draft program parameter setting. The size of the ignition can be directly adjusted by shifting gears.

6. The fuel combustion is complete, achieving the effect of smoke-free, dust-free, and odorless, and the test meets the industry's emission standards.

7. Safe use: The biomass boiler operates safely and is equipped with smoke temperature sensing probes, overpressure protection, and low water level protection.

By adopting advanced combustion technology, biomass is input from the furnace door and burned on the grate. High temperature flue gas is flushed through horizontal water pipes in the furnace and enters the flue gas combustion chamber. Through high-temperature radiation, the flue gas and smoke are fully burned again, and the heat is fully absorbed and utilized before being discharged into the atmosphere. It is smoke-free, environmentally friendly, and has high energy-saving efficiency. (The company has introduced German technology and obtained patents)

1. No need for annual inspection: According to the "Boiler Safety Technical Supervision Regulations", pressure steam boilers with normal water level and water capacity less than 30L are not within the scope of special equipment inspection, and do not require approval, annual inspection, or the hiring of professional certified stokers. Management is simple and convenient.

2. Fast steam production, energy-saving and environmentally friendly: Coal or biomass can produce steam in 7 minutes, and fuel and gas can produce steam in 3 minutes, which is 10 times faster than the starting speed of ordinary steam boilers, saving fuel. It is equipped with a dust collector, which can achieve the effect of no black smoke.

3. Low exhaust temperature: The exhaust temperature is only around 110 degrees, and the heat is fully absorbed. The exhaust temperature of ordinary steam boilers is around 250 ° -350 °, which is more efficient than ordinary steam boilers, and the fuel heat is fully absorbed.
